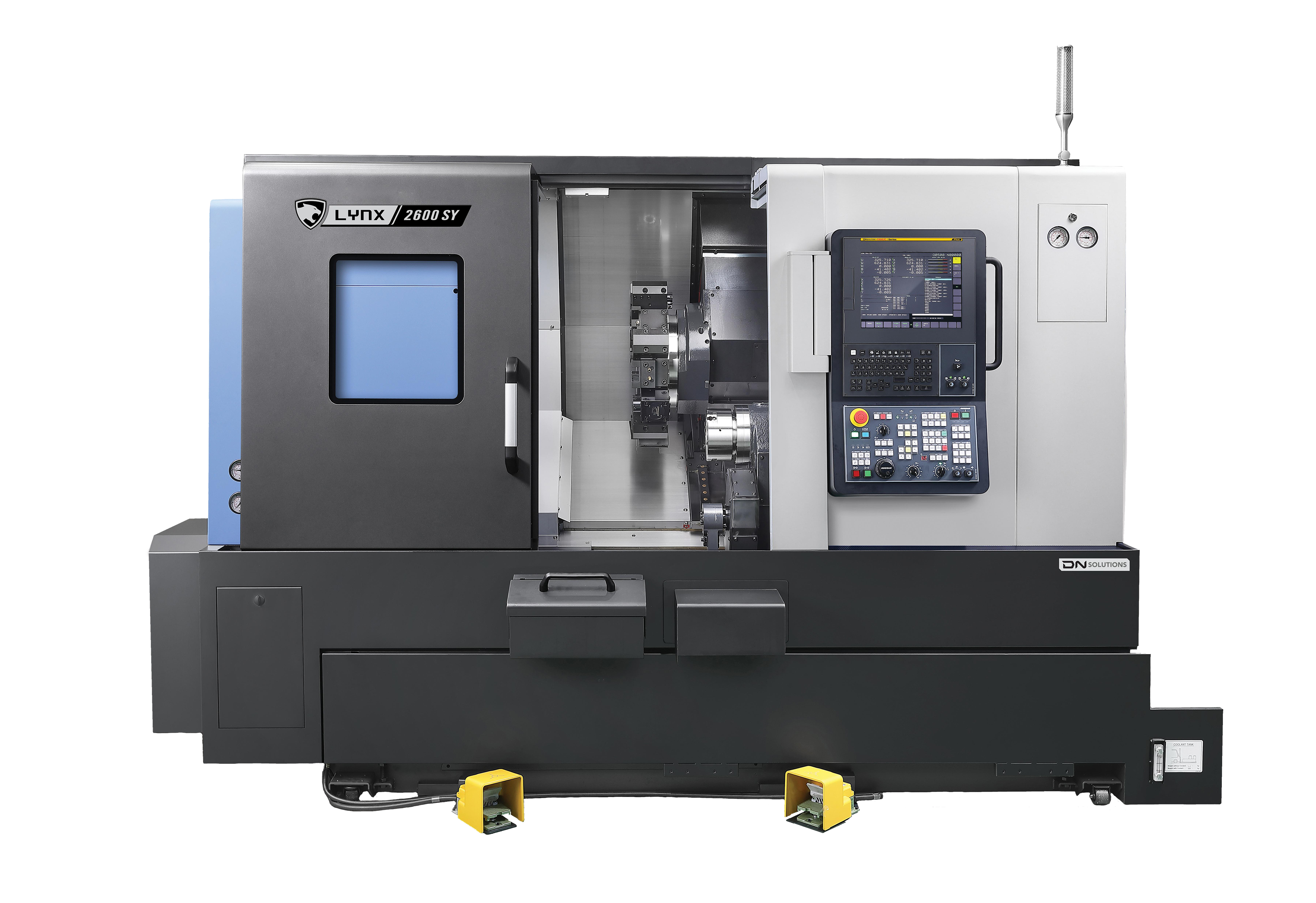

Lynx 2600SY turning centers are designed for long-term, high accuracy and superior surface finishes. High speed turret indexing and ultra-fast rapid traverse rates minimize non-cutting time. Mill-drill capability and Y-axis with a full C-axis sub spindle greatly reduce the need for secondary operations, eliminating additional set-up and handling costs. Classic manufacturing methods and ultra-rigid construction are combined with advanced technological features to provide exceptional value.

MAIN FEATURES

• 25 hp high torque digital AC spindle motor
• Large 3.19" bar capacity
• High speed 3,500 rpm spindle
• High precision pre-tensioned X-axes double nut ball screw with electric torque limiter protection (Airbag Function)
• 12 station heavy duty servo controlled turret with 24 position indexing and (0.15second) next station index
• Rigid 30-degree one piece cast iron slant bed
• Large 14.96" maximum turning diameter
• Widely spaced, high precision roller type linear motion guideways
• Main - sub spindle synchronization
• Fast 1,181 ipm Z axis rapid traverse
• Full contouring C-Axis on main and sub spindle
• Y axis mill / drill with rigid tapping on both main spindle, sub spindle and rotary tools.3 rotating tool holders included in standard tooling package
• 5,000 rpm, 7 hp, rotating tool spindle motor. Live tools can be mounted on all stations
• Y-Axis turret with 4.13” (±2.065”) total travel
• Bolt up chip conveyor design for easy access and removal of coolant tank
• FANUC 0i-Plus control with iHMi touch screen interface with swiveling operator's panel
• EZ Guide I Conversational Programming
• Tool Load Monitoring System

STANDARD EQUIPMENT AND WARRANTY

• Main spindle chuck: MH-210 10" Samchully 3-jaw chuck. 254 mm (10") diameter with 82 mm (3.23") bore, 4.4 mm (.173") jaw stroke – includes one set of soft jaws
• Main spindle chuck actuator with chuck clamp / unclamp proximity switches: SD-18582 hydraulic - 82 mm (3.23") through hole - 30 mm (1.18") stroke
• Sub spindle chuck: MH-208 8" Samchully 3-jaw chuck. 210 mm (8.26") diameter with 66 mm (2.59") bore, 3.7 mm (.145") jaw stroke – includes one set of soft jaws
• Programmable part catcher and part conveyor with bar feed interface standard
• Automatic tool setter
• Sub spindle part ejector with coolant flush• 65 psi multi-stage coolant pumps
• Separate coolant tank with coolant level switch and cartridge lubrication system
• Automated metered lubrication system with oil skimmer
• P4 class spindle bearings and P4 class angular thrust bearings
• 725 psi hydraulic unit
• Air blast system for chuck cleaning
• Safety features: fully enclosed work area, door interlock, hydraulic pressure safety switch, spindle Interlock, program protect, chucking signal
• 3 color signal tower and work light
• Tool box with operating tools
• Leveling bolts and pads
• Turning center instruction, operation, parts list and electrical drawing manuals in hardcopy format. FANUC manuals provided on USB drive
• Chuck clamp / unclamp proximity switches (main and sub spindle)
• Two-year machine parts warranty, one year labor warranty. Two-year control warranty: Parts and Labor
